Temperature indicator stick - Tempilstik

Short description

Tempilstik (temperature indicator) is designed to measure the temperature on the surface of metals during metal working operations: welding, heat treatment, soldering and others (The choice of a specific temperature indicator model is made according to the measured temperature parameter).

Manufacturer LA-CO Industries, Inc
Made in USA
Product article TSC0001
Price 18$ Contact for the special price

1-day maintenance

Temperature indicator stick - Tempilstik - full description

Tempilstik - Temperature indicator LA-CO Industries

Tempilstik Temperature Indicator Stick is designed for quick measurement of temperature on the metal surface in the range from +100°F (38°C) to 1999,4°F (1093°C) during welding, metalworking, soldering, etc. The accuracy of control is ±3% of the measured value.

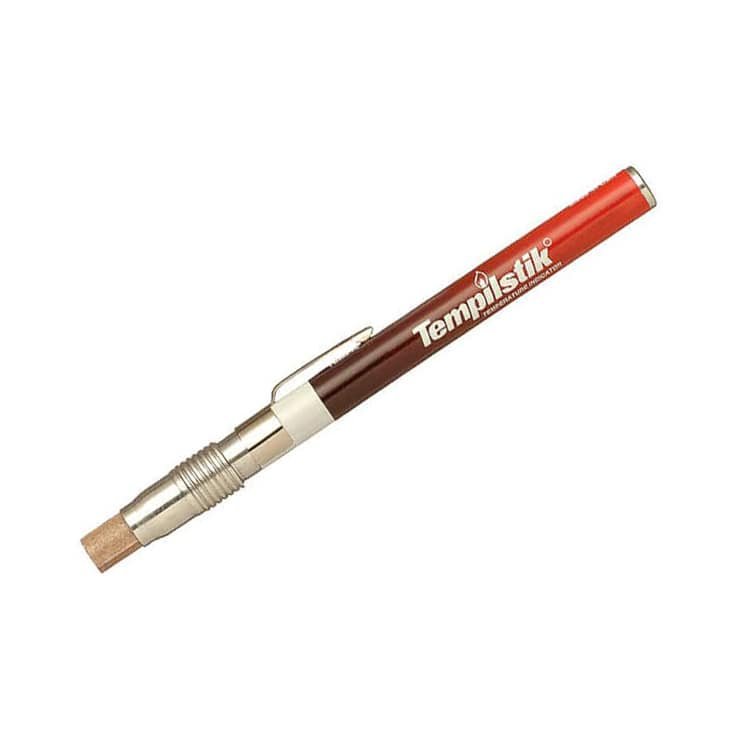

Temperature Indicator Stick is a lightweight rod made of lacopolymer composite, mounted in a metal case. The Tempilstik indicator is equipped with a rod lock and a pocket holder, slip resistant.

The rod melts at a preset temperature, called the rating of the pencil indicator. The rating is shown on the product case.

Working principle of Tempilstik.

Using a Tempilstik Temperature Indicator Stick (of appropriate denomination), apply a mark to the observed surface. The mark applied to the surface melts when the nominal temperature is reached. With a further increase in temperature, the label polymerizes and hardens.

After cooling the surface, the mark remains. It can be removed using abrasive materials.

Advantages of the temperature indicator of the Tempilstik welder

a cheaper instrument compared to an electronic thermometer;
ease of operation: it can be used by anyone, anywhere without recording devices;
wide range of measurement range – from +100,4°F (38°С) to 1999,4°F (1093°С);
high accuracy: ±3% of the specified value

Range of Tempilstik temperature indicators between 120°C and 1100°C

TSC0120

248°F / 120°С
TSC0140

284°F / 140°С
TSC0160

320°F / 160°С
TSC0180

356°F / 180°С

TSC0200

392°F / 200°С
TSC0240

464°F / 240°С
TSC0280

536°F / 280°С
TSC0320

608°F / 320°С

TSC0400

752°F / 400°С
TSC0460

860°F / 460°С
TSC0500

932°F / 500°С
TSC0560

1040°F / 560°С

TSC0600

1112°F / 600°С
TSC0700

1292°F / 700°С
TSC0900

1652°F / 900°С
TSC1100

2012°F / 1100°С

Temperature indicator stick - Tempilstik - Specifications

Areas of use

Welding, Heat treatment, High temperature soldering, Other technological operations in metalworking.
Application surfaces

Steel
Iron
Aluminum
Stainless steel Glass
Plastic
Ceramics

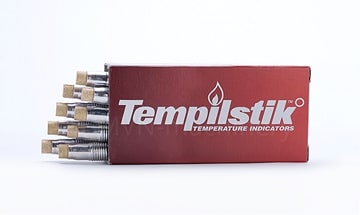

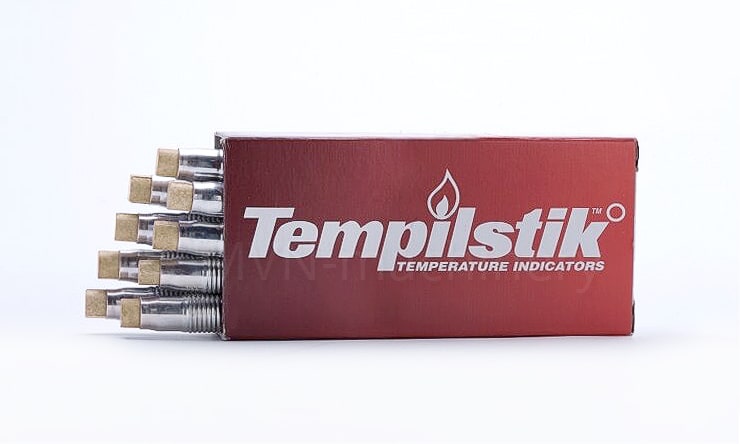

Amount in a package

10 pieces
